Cage & Rack Washer

ALPHA

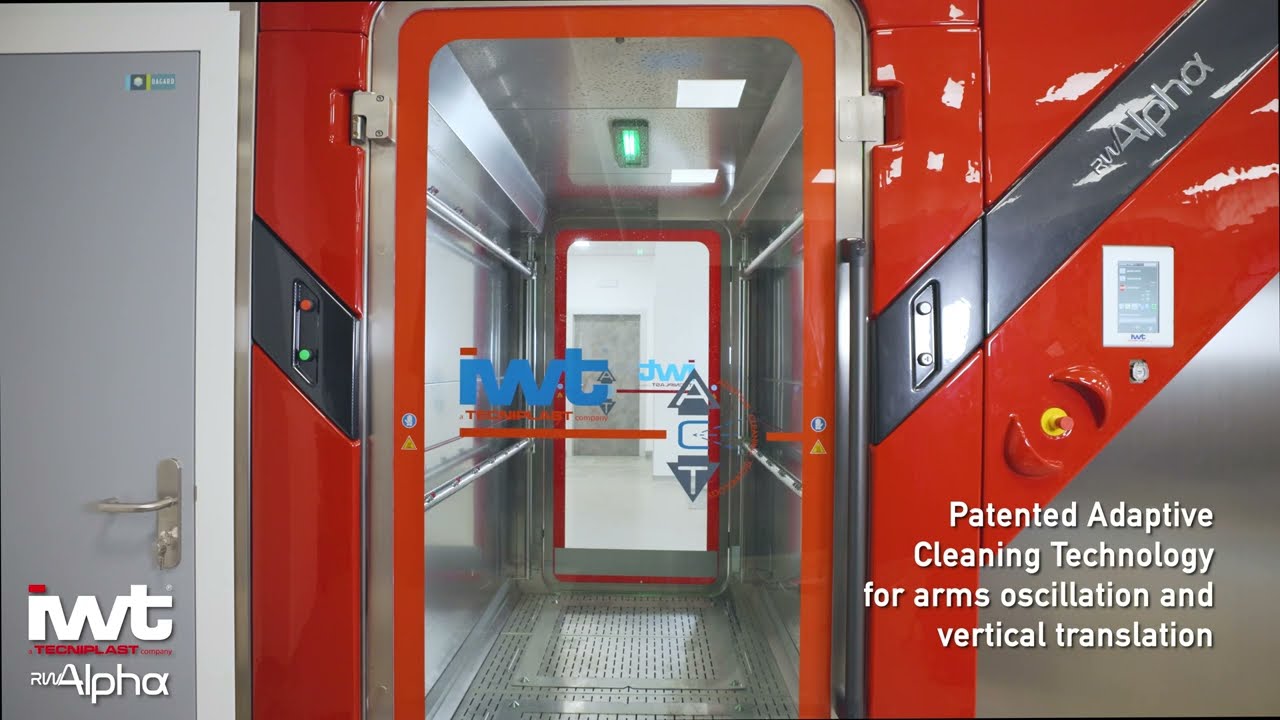

ADAPTIVE CLEANING TECHNOLOGY (ACT) (Patent Pending):

• Innovative cleaning arms control combining independent vertical and oscillating movements
• Superior water coverage compared to traditional oscillating arm technology
• Direct and uniform spraying pattern on all surfaces of the load grants top level cleaning and rinsing efficacy
• 11% narrower chamber width to minimise load-nozzles distance without compromises on loading capacity
• Full control on the arms positioning and trajectories, allowing a precise cleaning and rinsing of bottles

UNPRECEDENTED PERFORMANCE:

• New High Density presentation racks (Patent Pending): 75% extra loading capacity in a 30% lighter design
• Up to 154 mice cages (EM500) per load in a 11% smaller chamber volume
• Minimum 8 cycles per hour (AK-KAB certified) and over 1,230 mice cages (EM500) per hour
• Increased mechanical wash force (+39% TTI) thanks to optimized fluid-dynamic

SUSTAINABILITY FIRST:

• Up to -75% consumptions per cage, only 300ml-10oz of water used per cage
• Smaller water tanks resulting in up to 13% energy savings
• Unique capability to adapt the cycle to the actual loaded area: save time and utilities
• Frequency inverters as a standard for efficient motors management and cycle flexibility

BUILDING-FRIENDLY DESIGN:

• Only 100mm depth and 1950mm width pit dimensions
• Wall-to-wall installation capability in less than 2500mm operational width requirements
• Just cold water supply in case of steam heated unit
• Electrically-heated set-up with standard productivity guaranteed

EMPOWERED SET OF OPTIONS:

• Turnkey on-board vaporized H₂O₂ generator featuring fast aeration and catalyser
• Two process tanks design for efficient alkaline-acid alternate washing cycles
• Automatic tilting floor for the dripping of flat trolley surfaces
• Heat recovery system to pre-warm either drying air or incoming water
• On-board detergents storage with ergonomic handling logistics

ATLANTIS

• Higher than ever washing efficiency with wide coverage oscillating arms technology featuring washing and rinsing complete separate circuits

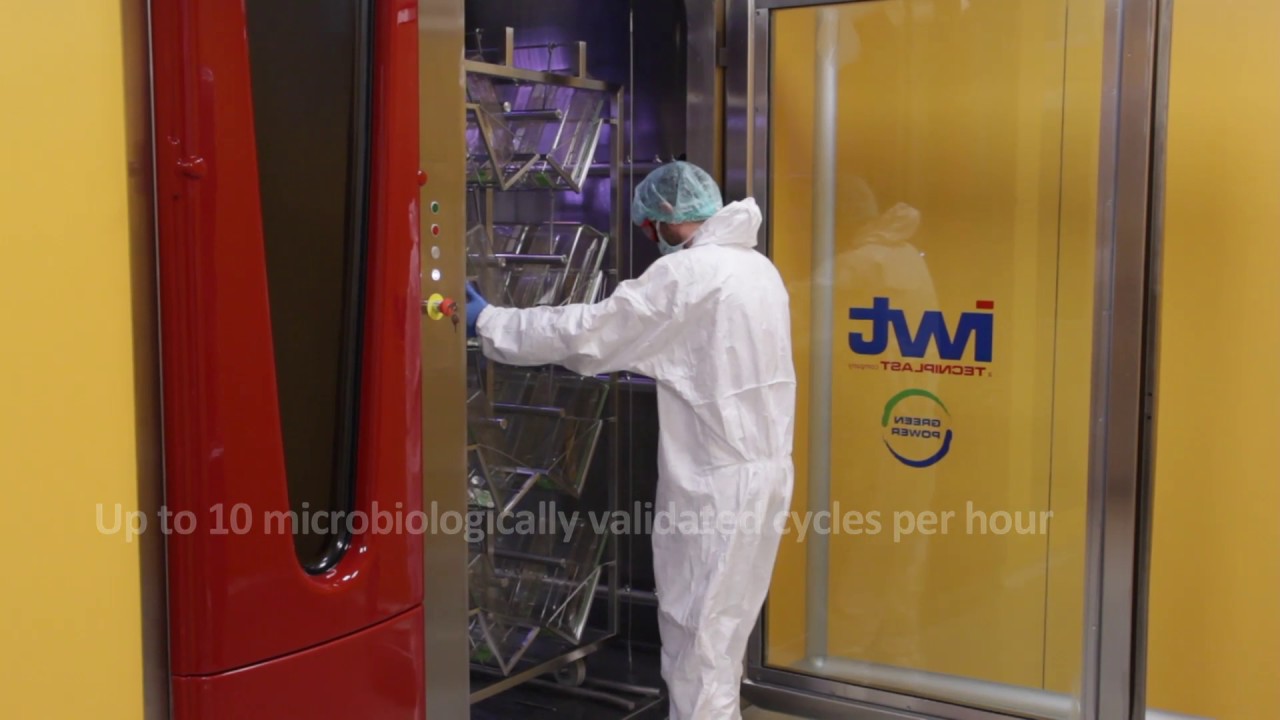

• High throughput up to about 1000 mice cages per hour, 10 cycles microbiologically validated cycles per hour
• Building friendly engineering to allow wall-to-wall installations and just 100mm pit depth
• Unique exhaust heat recovery system to avoid any connection with HVAC systems, even when performing H₂O₂ decontamination cycles
• Built-in H₂O₂ generator for turn-key package decontamination solutions granting the highest cycle safety and control
• Polaris™ interface for the ease of use inclusive of remote monitoring via mobile devices, remote diagnostic and data management functions

ALPHA

ALPHA AK KAB certificate

ATLANTIS

ATLANTIS AK KAB certificate
